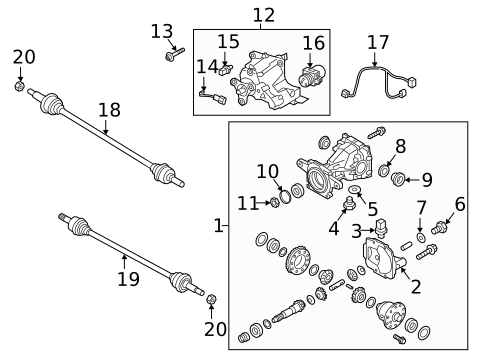

Axle & Differential for 2020 Hyundai Santa Fe
No.
Part # / Description / Price
Price
1
2019-2020 Hyundai Santa Fe - Differential Assembly
Hyundai
Hyundai Notes: PARTS: Part has related component that cannot be reused/reinstalled; lock nut.
Description: Awd, 2019-20. Santa Fe.
MSRP $1,895.73
$1,469.19
MSRP $1,895.73
$1,469.19
2
2013-2020 Hyundai - Differential Cover Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: With awd. Awd, 2019-20. Santa Fe XL.
MSRP $322.79
$250.16
MSRP $322.79
$250.16
3
2016-2024 Hyundai - Differential Vent Hose Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: Santa Cruz. Santa Fe. Kona. Awd, 2019-20. 2.5L awd. Awd without hybrid 2021-23. 1.6L awd.
MSRP $14.97
$11.60
MSRP $14.97
$11.60
4
2009-2024 Hyundai - Plug Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: 4wd. Without limited slip. Awd, 2019-20. 2.5L awd. Awd without hybrid 2021-23. 1.6L awd.
MSRP $12.95
$10.04
MSRP $12.95
$10.04
5
2009-2024 Hyundai - Drain Plug Gasket Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: Awd, 2019-20.
MSRP $3.77
$2.93
MSRP $3.77
$2.93
6
2009-2024 Hyundai - Plug Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: With awd. 4wd. Filler. Awd, 2019-20. With limited slip.
MSRP $10.79
$8.36
MSRP $10.79
$8.36
7
2009-2024 Hyundai - Differential Cover Gasket Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: With awd. With limited slip. 4wd. Awd, 2019-20.
MSRP $4.06
$3.15
MSRP $4.06
$3.15
8
2005-2024 Hyundai - Drive Axle Shaft Seal Hyundai
Hyundai Positions: Right
Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: Tucson. 4wd. Kona. Palisade. Awd, 2019-20. Santa Fe XL.
MSRP $33.10
$25.65
MSRP $33.10
$25.65
9
2010-2021 Hyundai - Dust Cover Hyundai
Hyundai Positions: Right
Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: With awd. 4wd. Awd, 2019-20.
MSRP $33.74
$26.15
MSRP $33.74
$26.15
10
2003-2024 Hyundai - Seal Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
MSRP $46.45
$36.00
MSRP $46.45
$36.00
11
2019-2020 Hyundai Santa Fe - Lock Nut Hyundai
Hyundai Notes: PARTS: Part included with differential assembly. Part cannot be reused/reinstalled.
Description: Awd, 2019-20. Santa Fe.
MSRP $68.90
$53.40
MSRP $68.90
$53.40
12
2013-2021 Hyundai - Awd Coupling Unit Hyundai
Hyundai Description: 4wd. Tucson. With awd. Santa Fe XL.
Not For Sale
Not For Sale
13
2013-2024 Hyundai - Coupling Mount Bolt Hyundai
Hyundai Description: Awd, 2019-20. 2.5L awd. 1.6L awd.
MSRP $3.74
$2.90
MSRP $3.74
$2.90
14
2016-2021 Hyundai - Differential Lock Wiring Harness Hyundai
Hyundai Notes: PARTS: Part included with coupling.
Description: Awd, 2019-20. With awd. Wire.
MSRP $36.81
$28.53
MSRP $36.81
$28.53
15
2016-2021 Hyundai - Differential Lock Sensor Hyundai
Hyundai Notes: PARTS: Part included with coupling.
Description: With awd. Awd, 2019-20.
MSRP $202.69
$157.09
MSRP $202.69
$157.09
16
2016-2023 Hyundai - Differential Lock Motor Hyundai
Hyundai Notes: PARTS: Part included with coupling.
Description: Tucson. With awd. Kona. Awd, 2019-20.
MSRP $618.61
$479.43
MSRP $618.61
$479.43
17
MSRP $45.69
$35.41
18
2019-2020 Hyundai Santa Fe - Axle Shaft Assembly Hyundai
Hyundai Positions: Right
Notes: PARTS: Part has related component that cannot be reused/reinstalled; axle nut.
Description: Santa Fe. Right. Awd, 2019-20.
MSRP $1,055.44
$817.96
MSRP $1,055.44
$817.96
19
2019-2020 Hyundai Santa Fe - Axle Shaft Assembly Hyundai
Hyundai Positions: Left
Notes: PARTS: Part has related component that cannot be reused/reinstalled; axle nut.
Description: Santa Fe. Left. Awd, 2019-20.
MSRP $1,280.35
$992.28
MSRP $1,280.35
$992.28
20
2016-2024 Hyundai - Axle Nut Hyundai
Hyundai Positions: Right
Notes: PARTS: Part cannot be reused/reinstalled.
MSRP $13.23
$10.25
MSRP $13.23
$10.25
